FWR TRAILER RANGE

STANDARD INCLUSIONS

• Top Deck: 4m  Bottom Deck: 10.4m
• TMC Disc Brake Axles with 2x Rear Steer Axles
• TMC Air Bag Suspension
• PTE Hydraulic Cylinders
• SSAB 700 Grade Steel
• Danfoss Hydraulic Valve
• 2x 20,000lb Rocklea Gears & Winches Hydraulic Winches (centre winch available)
• Dual Bolt in King Pin Positions
• Radio Remote
• Digital Weight Scale
• Polished Rims
• Kumho Tyres
• Container Pins
• 2x Toolboxes, 1x Centre Tray (additional Toolboxes are available)
• Drop-in Headboard with Lights
• Stainless Steel Chain Guards
• In Deck Tie Down Points
• Safety Prop
• Oversize Signage
• Laser Wheel Alignment Before Delivery
• Sandblasted
• 2Pak Paint – Your choice of any 2 colours

STANDARD INCLUSIONS

Standard Inclusions

• 12.5 Metre Bottom Deck (customizable length)
• 4 Rows of 4, Widening to 3.5m
• 19.5” K-Hitch – 8 Stud Axles (BPW optional)
• K-Hitch Weweler 11T Air Bag Suspension with Raise Lower Control Valve (Optional Extra: Hydraulic Suspension with All Axle Lift)
• Haldex GEN3 EBS
• 700 Grade Steel
• Single Fold Ramps (Bi-Fold optional)
• 3 King Pin Locations, Gooseneck set up for dolly
• Mega Pacific Hydraulic Power Pack and Plumbing To Run Off Truck PTO (Optional: Honda)
• Stainless Steel Chain Guards and Tie Rails
• In Deck Tie Down Points
• Container Pins (Optional)
• Jost Manual Legs
• 265/70/19.5 Triangle Tyres
• Polished Rims
• Spare Wheel
• 2x Stainless Steel Toolboxes
• 2x Polished Water Tanks
• Digital Weight Scale
• Oversize Signs
• Oversize Flags and Holders
• Laser Wheel Alignment
• Sandblast
• 2Pak Paint – Your choice of any 2 colours
• Hand Painted Line/Scroll Work

STANDARD INCLUSIONS

• ATM: Tri-Axle - Up to 28Ton / Tandem - Up to 23Ton
• 8m Deck (7.5m on Tandem Axle)
• 1m Beaver Tail
• 9 Leaf Spring Suspension
• Hydraulic Checker Plate Ramps 900mm x 2800mm (can be made to suit customers specs)
• Flush Mount Circular Chrome Tail Lights (3 Lights at the bottom and 2 Lights at the top of each ramp)
• Hydraulic Front Leg
• Power pack with battery system for operation of Hydraulics without the truck (Century Batteries Australian Made)
• Flush Coaming Rails
• Stainless Steel Chain Guards
• LED Lighting
• Lockable Battery Box
• Polished Water Tank
• Black Powder Coated Toolbox: 1200(L) x 450(H) x 380(D) mm
• Polished Rims (outers only)
• Swing Down Headboard 250mm High
• Spare Wheel
• Attachment/Hammer Well (can be removed if not required)
• Front Chain Locker Compartment, Rubber Lined and Lockable
• Chain Locks in deck for tying off machines
• Stainless Steel Chain Guards around Chain Down Points
• Adjustable Tow Hitch
• Full Strip of Rear Mudflaps
• Laser Wheel Alignment
• Paint - Your choice of two basic colours

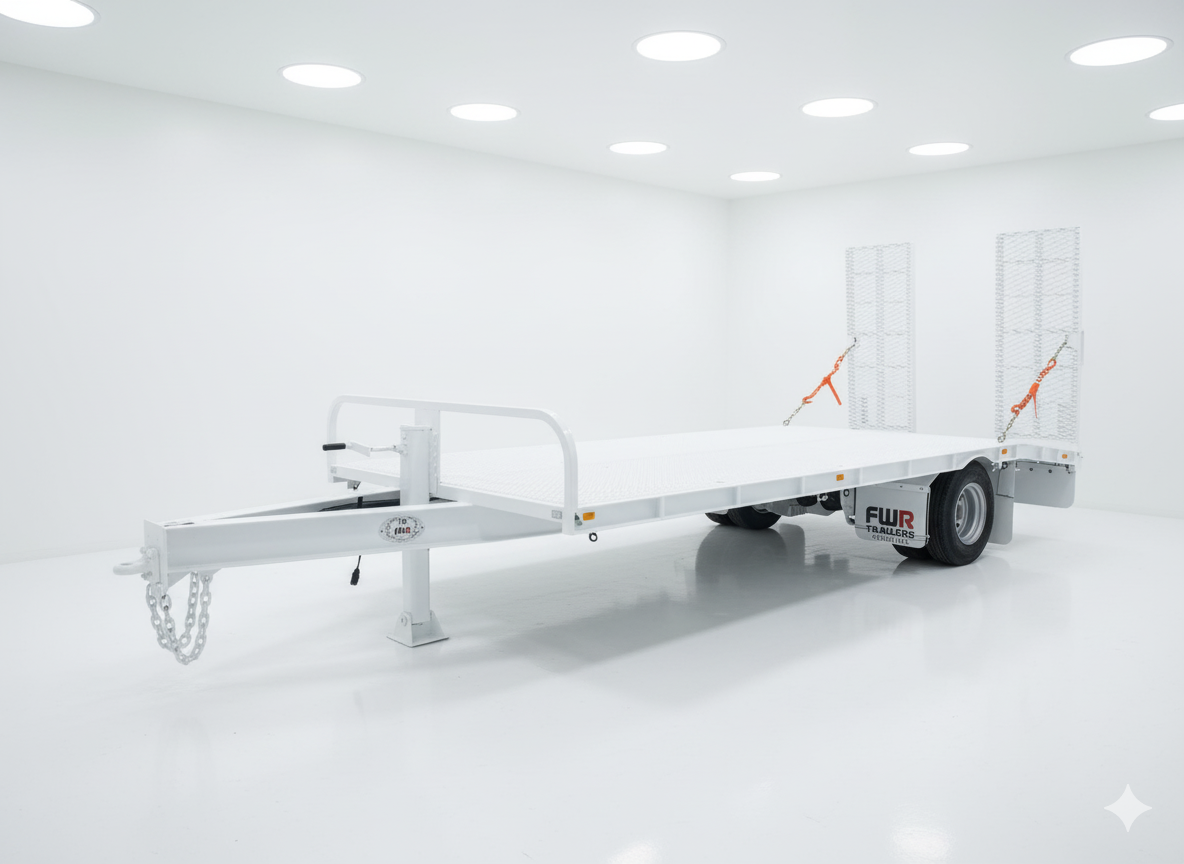

MINI MUSCLE - STANDARD INCLUSIONS

• Specifications:

  – 9 tonne ATM
  – 6.5 tonne carry capacity

  Standard Inclusions:
  – 4.5m Deck
  – 1m Beaver Tail
  – Spring-Assisted Mesh Ramps
  – LED Lighting
  – Steel Wheels
  – Chain Locks in Deck
  – Adjustable Tow Hitch

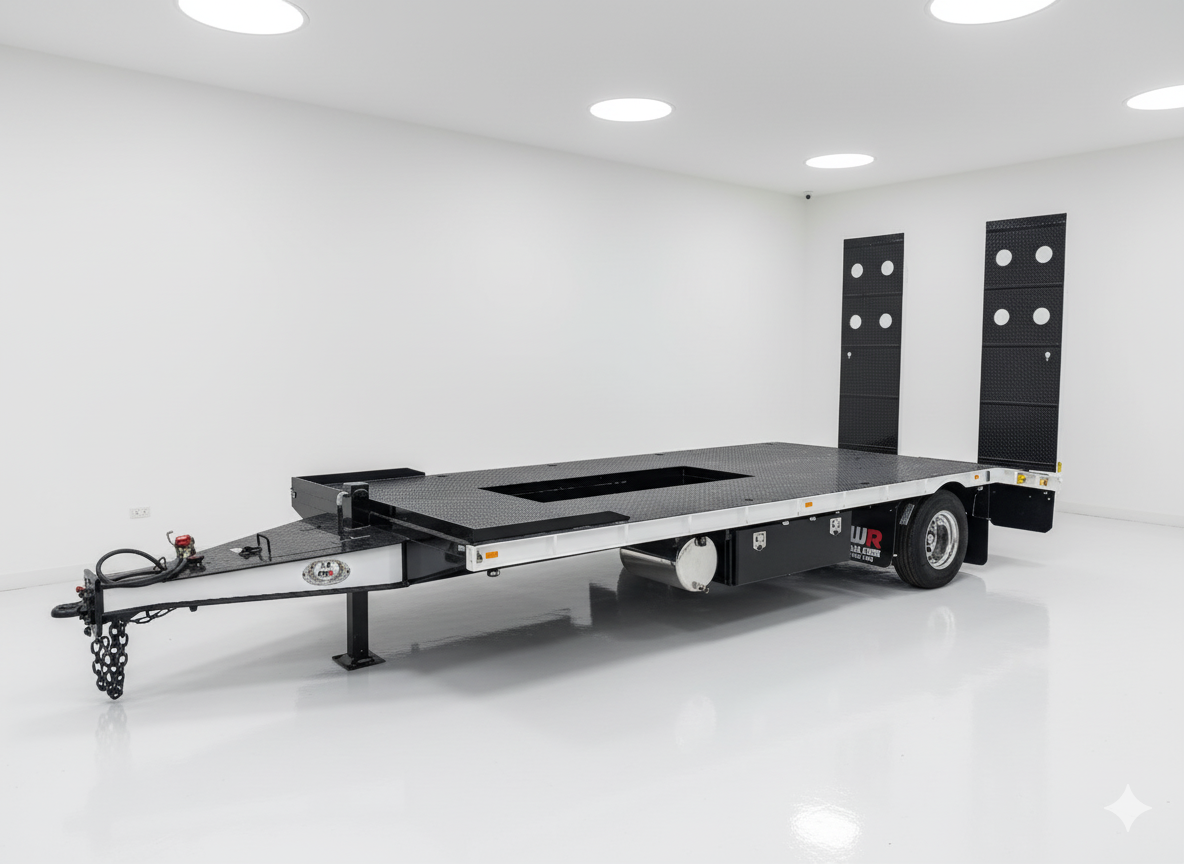

ALL HYDRAULIC - STANDARD INCLUSIONS

Specifications

• 9 – 10 Tonne ATM with ABS
• 11 – 13 Tonne ATM with EBS (Optional Extra)
• Up to 8 Tonne Carry Capacity
  *ATM can be raised or lowered if required*

Standard Inclusions

• 5m Deck
• 1m Beaver Tail
• 750mm x 2400mm Hydraulic Mesh or Checker Plate Ramps (can be made to suit customers specs)
• Spring Suspension
• 15” K-Hitch Axles
• Hydraulic Front Leg
• Power Pack with Redarc battery charging system for operation of Hydraulics without the truck (Century batteries Australian made)
• LED Lighting
• Polished Water Tank
• Black Powder Coated Toolbox: 1200(L) x 380(H) x 450(D) mm
• Polished Rims (outers only)
• Spare Wheel
• Front Chain Locker Compartment, rubber lined & lockable
• Chain Locks in deck for tying off machines
• Adjustable Tow Hitch
• Full Strip of Rear Mud Flaps
• Laser Wheel Alignment
• 2Pak Paint – Your choice of any 2 colours
