Brimarco is 100% Australian owned and operated. Established in 1976, Brimarco is a leader in transport and logistic solutions and has won numerous awards over the years including an Australian Design Award.

Using locally-sourced materials, specialist builders, joiners and electricians along with heavy welding and painting facilities in the custom built premises in Ballarat Victoria, Brimarco builds semi-trailers to withstand the extremes of the Australian climate and transport industry.

Here is a youtube clip of the build process:



To request a quote or specifications, please send your details to sales@cbtc.com.au or call on (03) 9303 2222

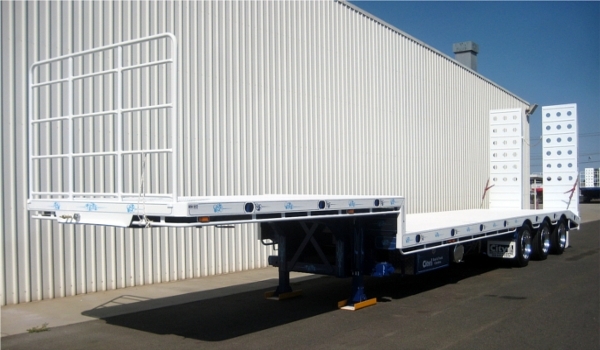

Heavy Duty Drop Deck

Standard Features

Fully Australian Made Heavy Duty Drop Deck Machinery Trailer

  • ATM: 44,000KG
  • Full Length Main Rails
  • 16mm Upper & 20mm Lower Flanges
  • 125mm Tapered Flange Beams
  • 8" Coaming Rails & 5mm C/Plate on Main Deck with Tie Down Points & Rope Rails
  • 20 Ton Heavy Duty 2950mm x 900mm Hydraulic Ramps
  • McCulloch Hydraulics
  • Fuwa K-Hitch 45T Tri-Axle Mechanical Suspension
  • 255/70R22.5 Tyres

12 Months Manufacturers Warranty

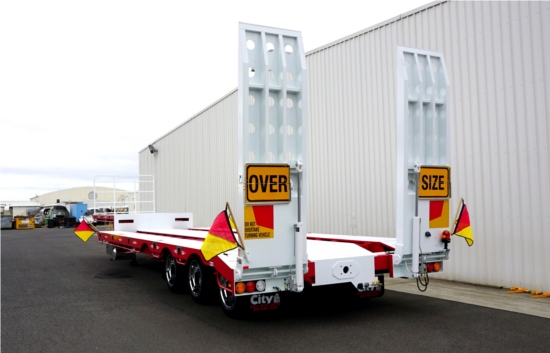

Heavy Duty Drop Deck Widener

Available Options:

Fully Australian Made Heavy Duty Widening Drop Deck Machinery Trailer

Incorporating all the features of a Heavy Duty Drop Deck PLUS:

  • Deck Widening from 2.5m to 3.5m
  • Phasing Deck Widening Cylinders
  • Double Acting Hydraulic Ramp Cylinders
  • Key-way Tie Downs in Deck
  • Relocation of Electric / Hydraulic Motor from Beavertail to between Landing Legs
  • Battery Isolator Switch
  • Anderson 175Amp Direct Charge Plug
  • Oversize Signs & Flag Pole Kit
  • Amber Flashing Beacon

12 Months Manufacturers Warranty

Custom Paint

Alloy Wheels

Upper Deck Ramps

Airbag Suspension

Diesel Power Pack

Container Pins

Bifold Ramps

Roadtrain Spec

Coaming Protectors

Toolboxes
